Coaxial cable for ship and other marine environments with Extra screen for excellent EMC properties.
For for VHF/UHF equipment. MIL 17-C/75. Also meets the requirements of Anatel.

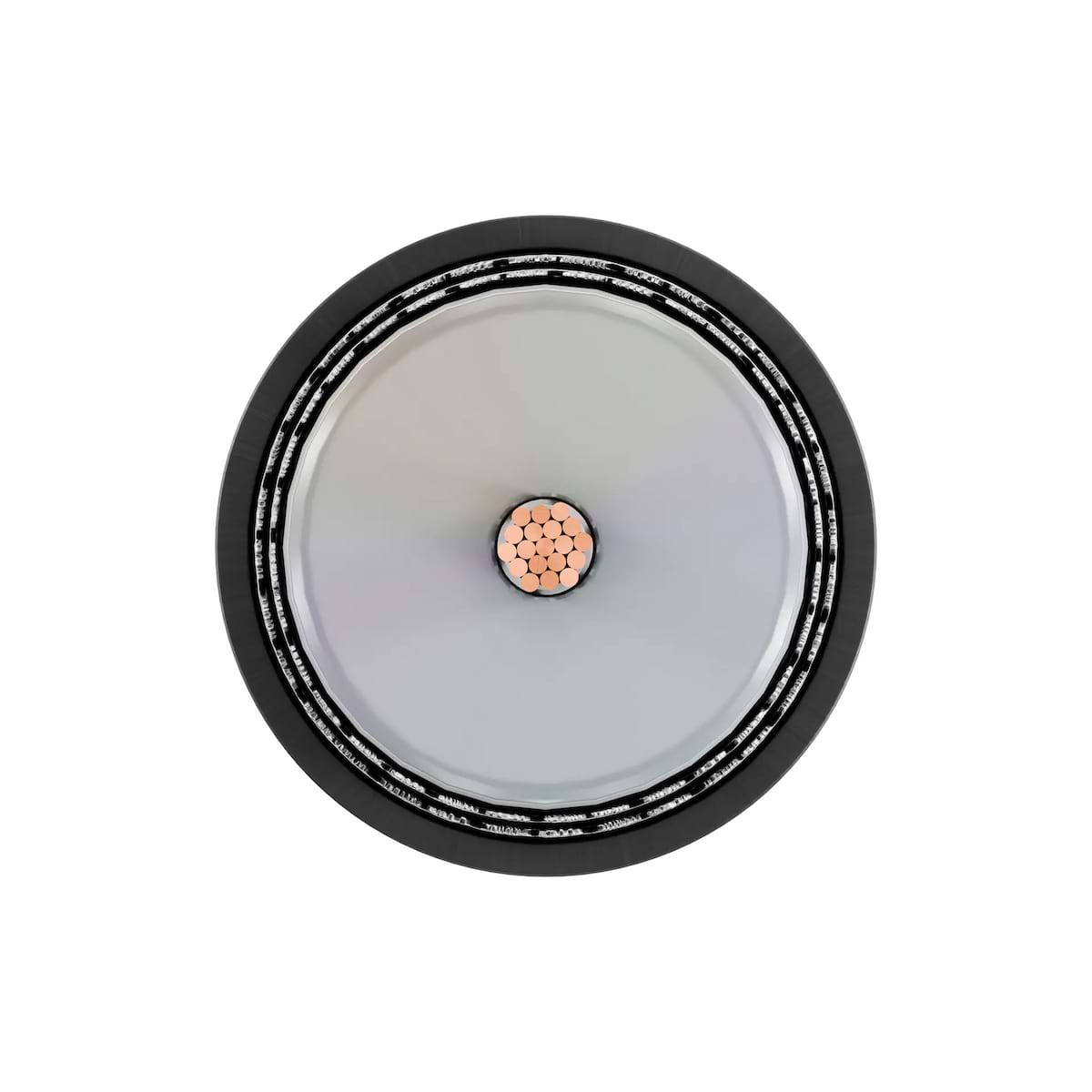

Construction
Conductor
Stranded
Silvercoated Cu
7 x 0.75 [mm]
Dielectricum
Low density PE
7.25 ± 0,18 [mm]
Screen
Al - polyester tape
100 [% optical coverage]
Screen
Silvercoated Cu braid
94 [% optical coverage]
Screen 2
Silvercoated Cu braid
98 [% optical coverage]
Jacket
Black
SHF1
O.D.
10.8 ± 0.18 [mm]
Weight
206 [kg/km]
Specifications
Operating temperature normal
-40 – +70 [°C]
Characteristic impedance
50±2 [Ω]
Braid Resistance
4.2 [Ω/km]
Conductor resistance
6 [Ω/km]
Test voltage
10 [kV]
Capacitance
100 [pF/m]
Min. bending radius
15 [x outer diam]
Norms
Halogenfree, max content corrosive and toxic gases
IEC 60754-1 & IEC 60754-2
Material properties, insulation and sheath
IEC 60092-359
Design and testing standards
IEC 60096-0-1 Ed 3
IEC 61196-1-100
Flame resistance
IEC 60332-3-22 & IEC 60332-3-24
Flame retardant
IEC 60332-1-2
Smoke emission
IEC 61034-2
Oil and fuel resistant
IEC 60811-3-1
UV-resistant
UL 1581, ISO 4892
Certification
DNV / ABS
Part No.
1092444
Available with MUD resistance, part.no. 1092446
Attenuation
| Frequency (MHz) | Attenuation Max. (dB/100m) |
|---|---|
| 5 | 1.1 |
| 10 | 1.5 |
| 50 | 3.8 |
| 100 | 5.4 |
| 200 | 7.9 |
| 300 | 9.9 |
| 500 | 12.9 |
| 600 | 14.5 |
| 800 | 17.2 |
| 1000 | 19.6 |
| 1350 | 23.5 |
| 1500 | 24.8 |
| 1750 | 27.4 |
| 2150 | 30.9 |
| 2250 | 31.8 |
| 2500 | 34.0 |
| 2750 | 36.0 |
| 3000 | 37.6 |
| 5500 | 55 |
Structural return loss dB
| MHz | dB |
|---|---|
| 30 - 300 | > 31 |
| 300 - 600 | > 28 |
| 600 - 1000 | > 27 |
| 1000 - 2000 | > 24 |
| 2000 - 3000 | > 22 |
Screening effectiveness IEC 61196-1
| MHz | dB |
|---|---|
| 100 - 900 | > 90 |
| 900 - 2000 | > 80 |
| 2000 - 3000 | > 70 |
