RF-LLX-CL 7/8" SHF1

Variant:

Radiating coaxial antenna cable for maritime, building, and tunnel installations where conventional radio coverage
is limited. RF‑LLX‑CL supports wideband frequency operation and enables uniform RF signal coupling along the cable,
making it suitable for communication systems with extended frequency range requirements.

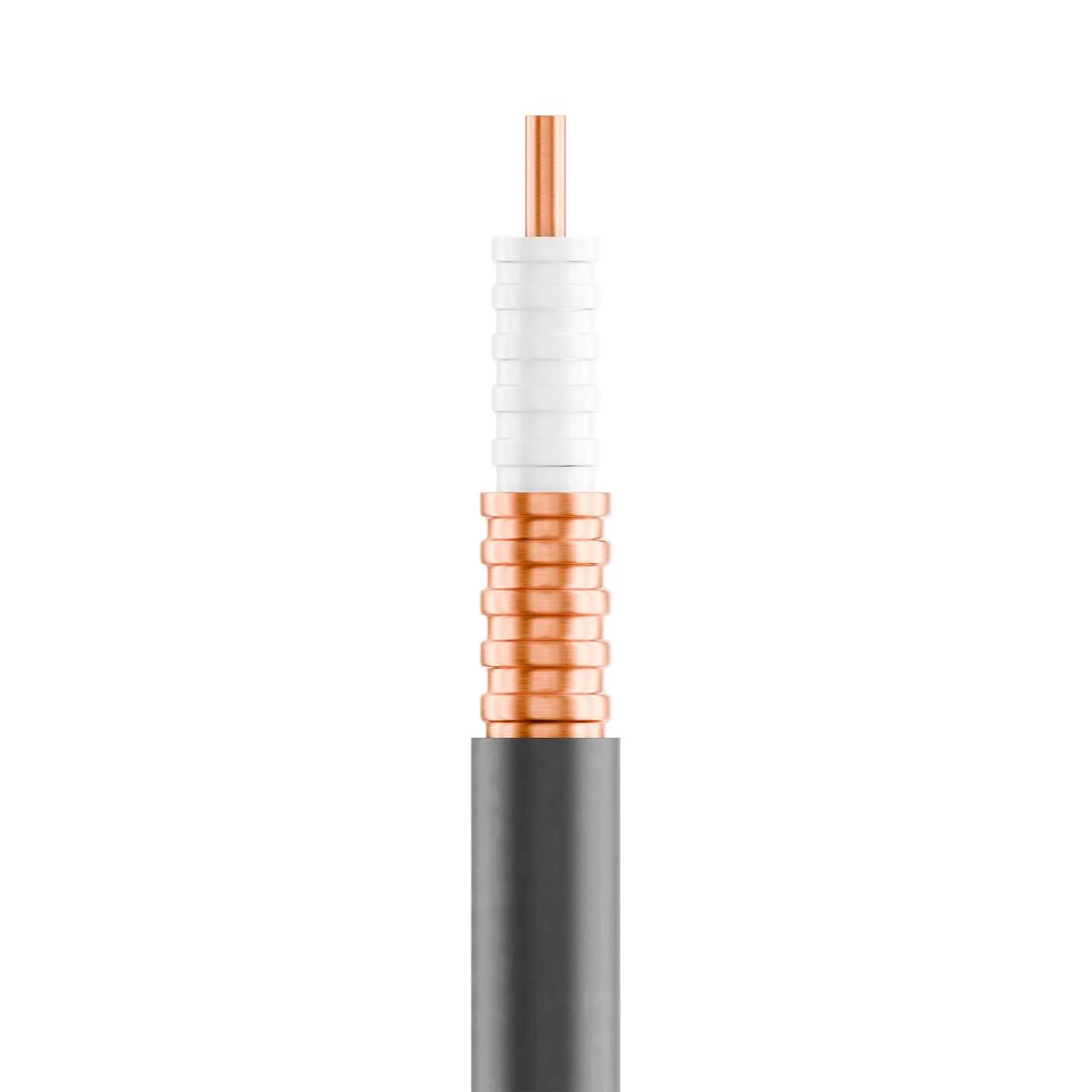

Construction coaxial

Conductor
Smooth
Cu-tube
Ø = 9.0 ± 0.1 [mm]
Dielectric
Foamed PE
Ø = 22.0 ± 0.5 [mm]
Screen
Corrugated slotted Cu-tube
Ø = 24.9 ± 0.3 [mm]
Jacket
Black or grey
SHF1
UV-resistant
Outer diam.
27.5 ± 0.5 [mm]
Weight
456 [kg/km]
Jacket marking
NEK Kabel – RF-LLX-CL 7/8" 50 – SHF1 – DD.MM.YYYY – ****m

Specifications Coax

Temperature range
-20 – +70 [°C]
Temperature range at installation
-20 – +50 [°C]
Impedance
50 [Ω]
Insulation resistance
10000
[MΩ/km]
Velocity factor
88 [%]
Max pulling force
1500 [N]
Min bending radius installed
140
[mm]
Min. bending flexible
250
[mm]
Identification of radiation:
Opposite side of the slots

Norms

Halogenfree, max content corrosive and toxic gases
IEC 60754-1 & IEC 60754-2
Material properties, insulation and sheath
IEC 60092-360 (359)
3582
Design and testing standards
IEC 60096-0-1 Ed 3
EN 50288-1
Flame resistance
IEC 60332-3-22 Cat.A , IEC 60332-3-24 Cat.C
Flame retardant
IEC 60332-1-2
Smoke emission
IEC 61034-1 & IEC 61034-2
Oil and fuel resistant
IEC 60811-2-1
Mineral Oils, IRM 902: 23ºC / 7 days, 70°C / 4h
Diesel,          IRM 903: 23ºC / 7 days, 70°C / 4h
UV-resistant
ASTM G 154
CPR classification
Dca-s1,d2,a1
Certification
DNV
Part No.
1092480
NEK offers connectors for RF-LLX-CL 7/8" 50:
Female part no. 65444

Attenuation

Frequency [MHz] Attenuation [dB/100m ±5%] Coupling loss 95% [dB±10]
150 ≤ 1.8 78
450 ≤ 3.6 86
800 ≤ 4.6 86
900 ≤ 4.9 85
1800 ≤ 7.6 85
2000 ≤ 8.0 83
2200 ≤ 8.6 83
2400 ≤ 9.0 84
2600 ≤ 9.4 82
3000 ≤ 10.3 82
3500 ≤ 11.4 83

VSWR

Frequency [MHz] -
260 – 480 ≤ 1.25
820 – 960 ≤ 1.25
1700 – 1860 ≤ 1.25
1900 – 2050 ≤ 1.30
2100 – 2200 ≤ 1.30
2300 – 2500 ≤ 1.30
2500 – 2700 ≤ 1.30
3400 – 3550 ≤ 1.30

Updated

Date Rev. Description
21.10.2019 1 O.diam. and coupling loss
15.05.2020 2 VSWR
17.02.2022 3 Coupling loss
23.11.2023 4 Additional info
23.04.2025 5 Attenuation and CPR
