RG 6 A/U Marine ARM MUD

RG 6 A/U Marine ARM MUD

Variant:

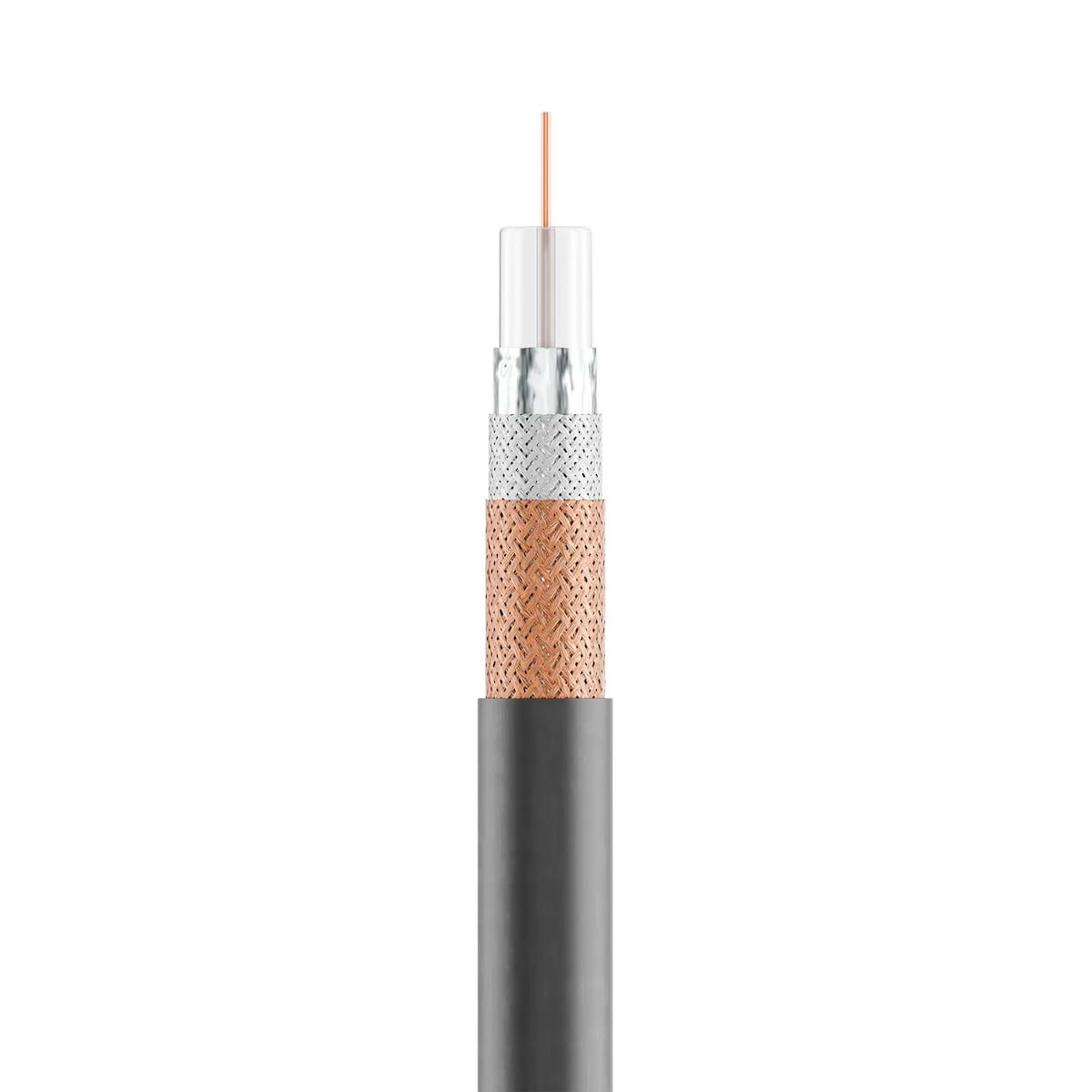

Robust long life coaxial cable designed for ship- and offshore environments. Electrical data in compliance with MIL C-17. Steel braid armour meets requirements of EMC shield and the triple shielded cable has better screen effiency than standard RG products.
RG 6 A/U must not be confused with RG 6, which is a simple CATV cable.

Construction

Conductor
Copperweld
0,72 ± 0,025 [mm]
Dielectricum
PE
4,7 ± 0,10 [mm]
Screen
Al-polyester + Al tape
100 [% optical coverage]
Screen
Silvercoated  Cu braid
96 [% coverage]
Screen 2
Bare Cu-braid
96 [% optical coverage]
Inner jacket
SHF1
8.5 ± 0.10 [mm]
Armour alt.1
Galvanised steel wire braid
Armour alt.2
Tinned Cu-braid
Armour alt.3
Bronze wire braid
Jacket
Black
SHF2
O.D.
15 ± 0.2 [mm]
Weight
305 [kg/km]
Jacket marking
NEK Kabel - RG 6 A/U Marine SHF2 ARMOURED

Specifications

Operating temperature normal
-40 – +70 [°C]
Braid Resistance
5 [Ω/km]
Conductor resistance
97 [Ω/km]
Test voltage
6 [kV]
Capacitance
67 [pF/m]
Min. bending radius
5 [x outer diam]
Min. bending radius flexible
10 [x outer diam]

Norms

Halogenfree, max content corrosive and toxic gases
IEC 60754-1 and IEC 60754-2
Material properties, insulation and sheath
IEC 60092-360 (359)
Design and testing standards
IEC 60096-0-1 Ed 3
Flame resistance
IEC 60332-3-24 Cat.C
Flame retardant
IEC 60332-1
Smoke emission
IEC 61034-1 and IEC 61034-2
MUD resistant
NEK TS 606
Certification
DNV
Part No.
1092451
Use BNC crimp LSD 53938C.
Can not be used with F-connectors.
Alternative armour, bronze or copper

Attenuation

Frequency (MHz) Attenuation Max. (dB/100m)
5 1,8
10 2,3
50 5,7
100 8,1
200 11,7
300 14,5
500 19,0
600 21,0
800 24,6
1000 27,7
1350 32,6
1500 34,6
1750 38,7
2150 44,1
2250 44,5
2500 46,6
2750 49,3
3000 53,4

Structural return loss dB

MHz dB
30 - 300 > 28
300 - 600 > 24
600 - 1000 > 22
1000 - 2000 > 18
2000 - 3000 > 15

Screening effectiveness IEC 61196-1

MHz dB
100 - 900 > 90
900 - 2000 > 80
2000 - 3000 > 70

Updated

Date Rev. Description
10.03.2015 1 Armour
